Detailed introduction:



This series of pulsation vacuum sterilizer utilizes saturated steam as its sterilization medium which releases a large amount of heat in the stage of condensation,and ensure the sterilizing environment in high temperature and at a certain humidity,  Afler a period of insulation in such status, sterilization purpose is achieved. The application of pulsating Vacuum exhausting has successfully eliminated the temperature influence from cold air, and helping the sterilization items to be dried by means of vacuum and dehumidification between the jacketed layers.



Structure and Characteristic of the Equipment

Body of the sterilizer:
1) it is designed and manufactured in accordance with GB150 "the Pressure Vessel", GB 8S99 "The Technical Requirements of Large Steam Sterilizer--Automatic Control Protocol", and TSG R0004 the "Safety and Technology Specification for Fixed Monitor VesseIs" and related inspection procedures.
2) The chamber in horizontal rectangular shape with double-Iayer structure is made from S30408
3) Door sealing: Pneumatic sealing; both doors are interlocked and completely conform to lhe requirements of lhe specification.
4) With standard GMP authentication interface

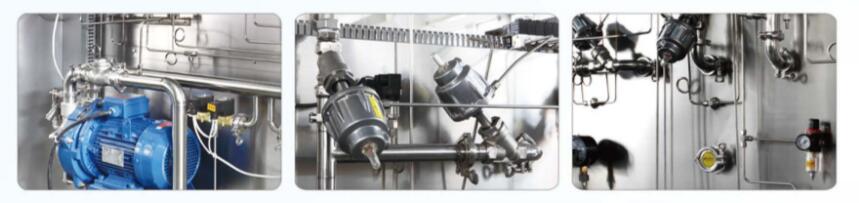

Sterilizer piping system:
the pipeline is designed with the best configuration. AIl the spares are from qualified brands at home and abroad

Steri lizer control system:
SIEMENS PLC and SIEMENS touch screen, this system is easy to implement lhe program selection, parameter setting, equipment operation, report processing and other functions. It has perfecl safety measures. The F0 value and the temperature time gives double guarantee for sterilization. A single parameter control is also available. It has a perfect sterilization records .

 Main Parameters and U tilities

Design Pressure	0.245MPa	Working Pressure	0.225MPa
Design Temperature	139℃	Working Temperature	105-134'C
Vacuum	-0.09 MPa	Temperature Equilibrium	≤ ± 1℃
Water Source Pressure	0.15~0.3Mpa	Compressed Air Pressure	0.3~0.7 MPa
Steam Pressure	0.3~0.7Mpa	Power	AC380V, 50HZ The three-phase and five-wire system AC380V,50HZ

Size & Utilities

Model	Overall Size Lx W x H (mm)	Chamber Size Lx W x H(mm)	Steam Consumption (KG)	Tap Water Consumption(KG)	Power(KW)	Net Weight (KG)
WG-0.25	1100x1350x1900	800x600x600	18KG	35KG	2+24 KW	900KG
WG-0.36	1300x1350x1900	1000x600x600	25KG	40KG	2+24 KW	1000KG
WG-0.6	1500x1360x1950	1200x610x910	30KG	45KG	3+36 KW	1400KG
WG-0.8	1800x1360x1950	1500x610x910	40KG	50KG	3KW	1600KG
WG-1.2	1750x1440x1950	1450x680x1180	48KG	55KG	4KW	1800KG
WG-1.5	2150x1440x1950	1850x680x1180	55KG	60KG	4KW	2000KG
WG-2.0	1950x1750x2200	1600x900x1400	65KG	65KG	4.5KW	2500KG
WG-2.5	2300x1750x2200	1950x900x1400	75KG	75KG	6KW	3000KG
WG-3.0	2700x1750x2200	2400x900x1400	90KG	90KG	8KW	3500KG

Note:  24 36  represent the power of the built-in steam generator ( optional )
